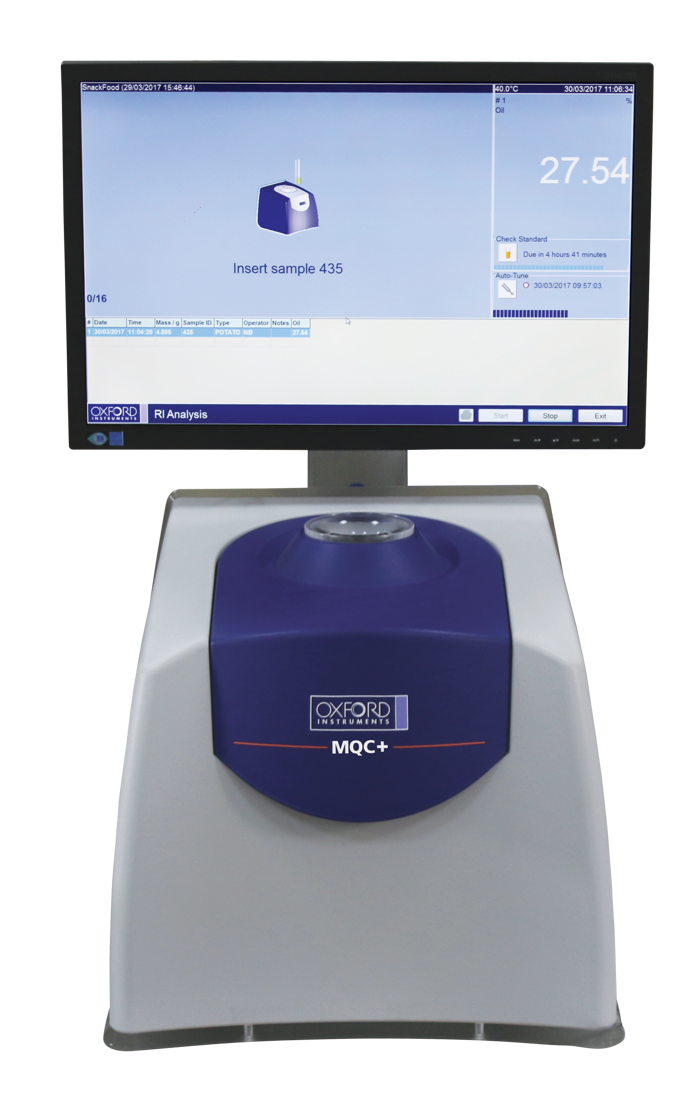

MQC+ NMR Analyser

MQC+ - Easier, Faster, More Accurate QA/QC

The Oxford Instruments MQC+ benchtop Nuclear Magnetic Resonance analyser (NMR analyser) measures oil, water, fluorine, and solid fat in a variety of samples and is typically used as a quality assurance and quality control product. It also measures the physical properties of materials such as polymer crystallinity/density and molecular weight. Analysis using the MQC+ takes from a few seconds to a few minutes, which means that a high volume of samples can be processed quickly and efficiently.

To increase laboratory productivity and efficiency, MQC+ analysers can be used with the MQ-Auto sample automation system.

Key Features

• Accurate: NMR signals are generated from all parts of the sample, guaranteeing more accurate measurements.



• Non-destructive: NMR measurements do not damage the sample in any way, so samples can be kept for repeat measurements or to be analysed using other techniques.


• No hazardous solvents or chemicals: the NMR method does not require solvents, removing the need for fume cabinets, specially trained staff and expensive disposal procedures.



• Cost-efficient: low maintenance and running costs.



• Simple linear calibration: Only a few samples spanning the concentration range are required.

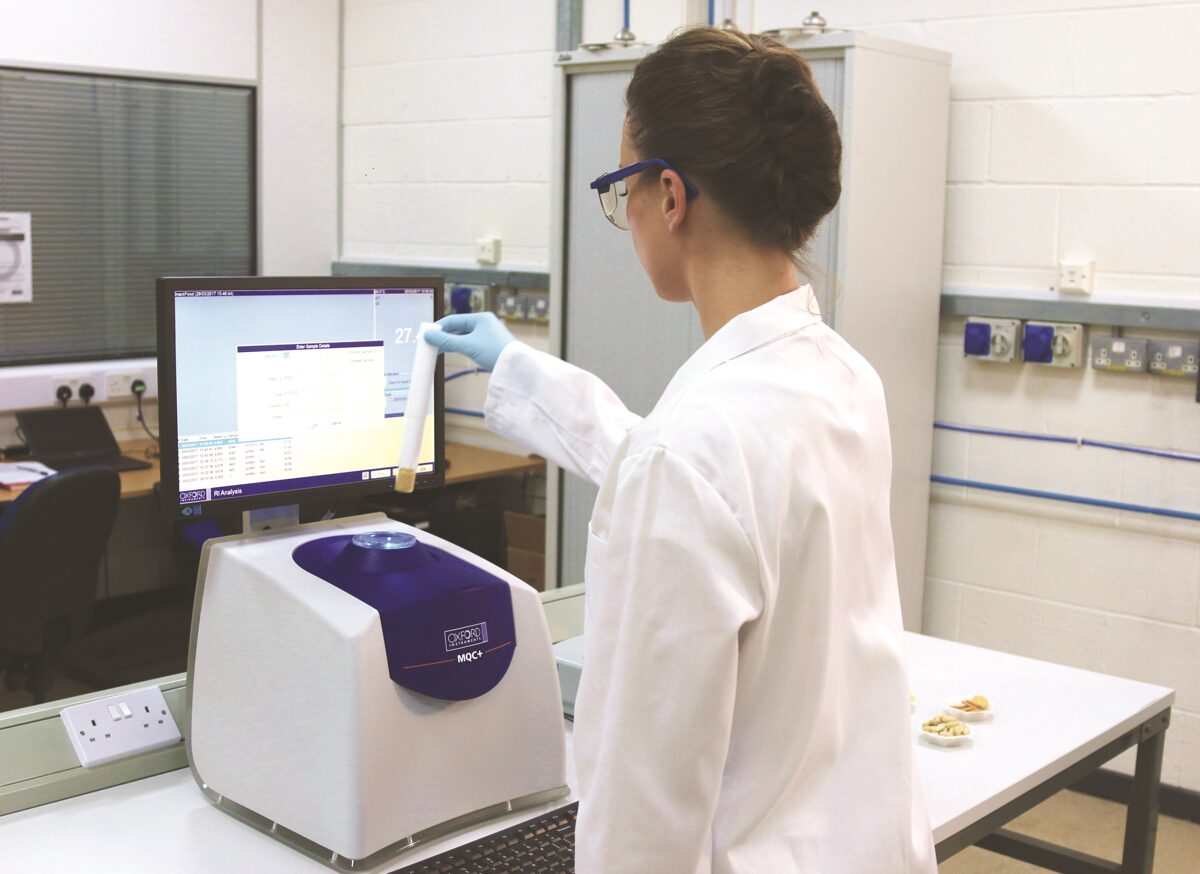

• Simple operation: MQC+ is designed to make the job of technicians working in QA/QC labs easier. It simplifies the analysis process and removes the need for extensive operator training.

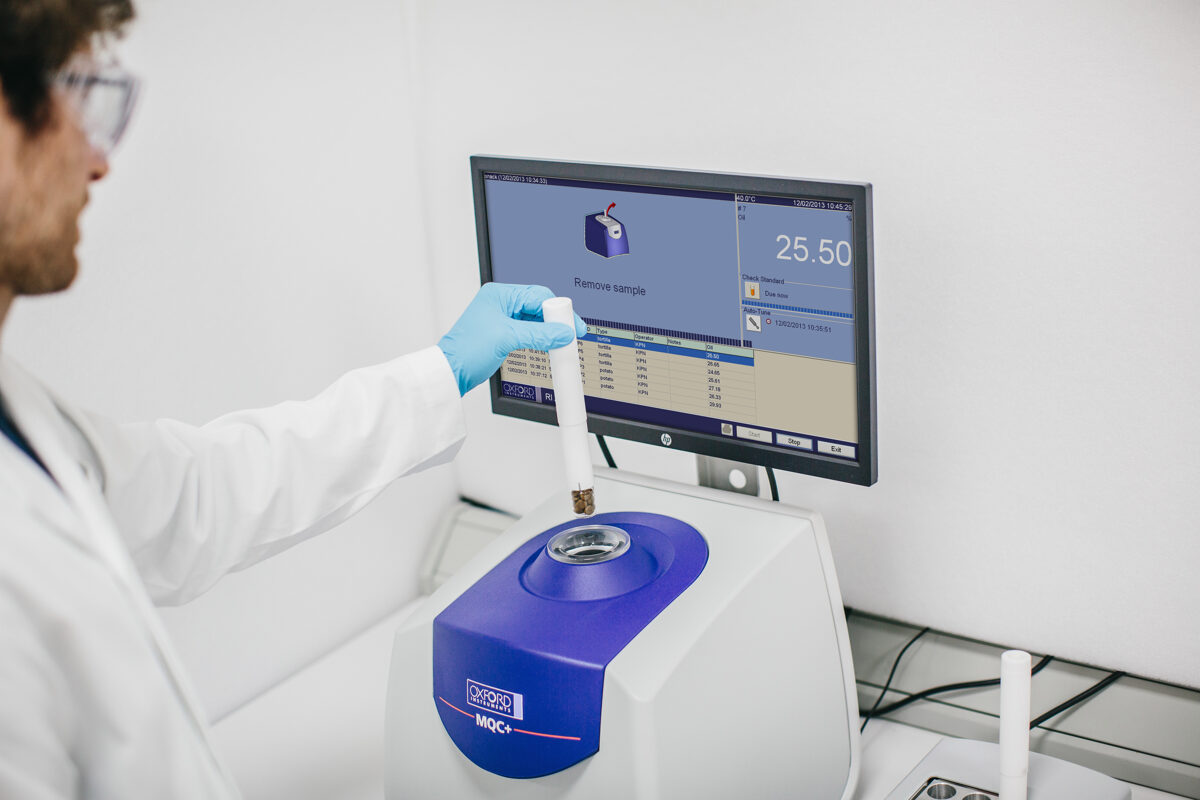

• Minimal sample preparation: Simply transfer the sample into a tube, condition it and analyse.



• Rapid analysis, which means you can process a high volume of samples in the lab quickly and efficiently.

Options

MQC+ is available in three models: MQC+ 23, MQC+5 and MQC+F.

MQC+23 is used for smaller samples and high sensitivity applications; for example, it is used to measure small amounts of oil applied to artificial fibres and fabrics to enhance their properties. MQC+5 is used for large samples, typically agricultural products, measuring the oil, and moisture content in oilseeds. MQC+F is used to measure fluorine in toothpaste and minerals.

MQC+ can be fitted with a variety of robust sample holders, commonly known as probes, to easily handle different applications and sample sizes. The sample holders can be changed easily in a matter of minutes.

Every MQC+ system is supplied with all software and sampling accessories necessary for the application. Other laboratory equipment, such as dry heaters, water baths, balances and autosamplers can also be supplied.

Videos

MQC+ Product Video: https://youtu.be/522mqf7OOdI?si=cMf7Rj78JvZ7cmNr

MQ-Auto: https://youtu.be/HenuzUYJpug?si=swvYQ0o6lPZkvycI

MQC+ Spin Finish Analysers: https://youtu.be/G-19DeMbqxA?si=kIIrJsUbtlOb8aWU

MQC+ Analysing Oil and Fat in Food: https://youtu.be/sXKwpI2MW8o?si=cuNcowh1Rt1Iamlu

MQC+ Analysing Oil and Water in Oilseeds https://youtu.be/-pGZT1IWGGE?si=vAVsNtl3I7Ht_N2_

Links

Manufacturer's website: https://nmr.oxinst.com/mqc

Brochure: MQC+ Brochure
